Newton CDM 503 Mesh Membrane

Newton Mesh Membrane - 20m² & 40m²

Newton CDM 503 is a meshed cavity drain membrane for use in below ground waterproofing systems. It’s ideal for internal use on basement and cellar walls as well as vaults and tunnels.

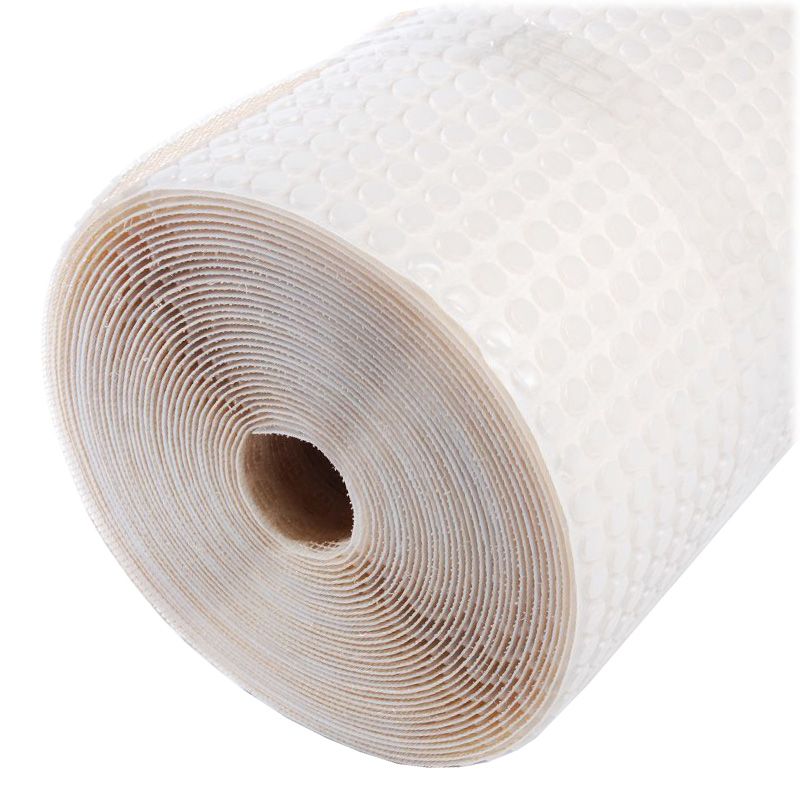

Permagard stock Newton CDM 503 mesh in 1m x 20m rolls for up to 20m² coverage and 2m x 20m rolls for up to 40m² coverage.

With its 3mm stud, Newton 503 Mesh is just over 3.5mm in overall thickness. This makes it the preferred meshed membrane when space is at a premium. Its high quality thermally-welded meshed surface provides an excellent key for lime mortars, renders, plasters or dabbed plasterboard.

Newton CDM 503 Mesh has a life expectancy of at least 30 years (DIN 9001:2000) and is highly resistant to water, alkalise, saline solutions and organic acids. It is not affected by minerals, bacteria, fungi and other small organisms.

Newton CDM 503 Mesh Membrane Kits

Newton CDM 503 Mesh Membrane is available in single rolls or in kit form which contain the components you need to install onto the wall. We do not include the jointing tapes as this will vary depending on installation method and area.

Newton CDM 503 Mesh 20m² Kit contents:

• 1 x Newton CDM 503 Mesh 20m²
• 2 x Newton Mesh Plugs (bag of 200)
• 2 x Plug Seals (bag of 200)
• 1 x 8mm SDS Drill Bit

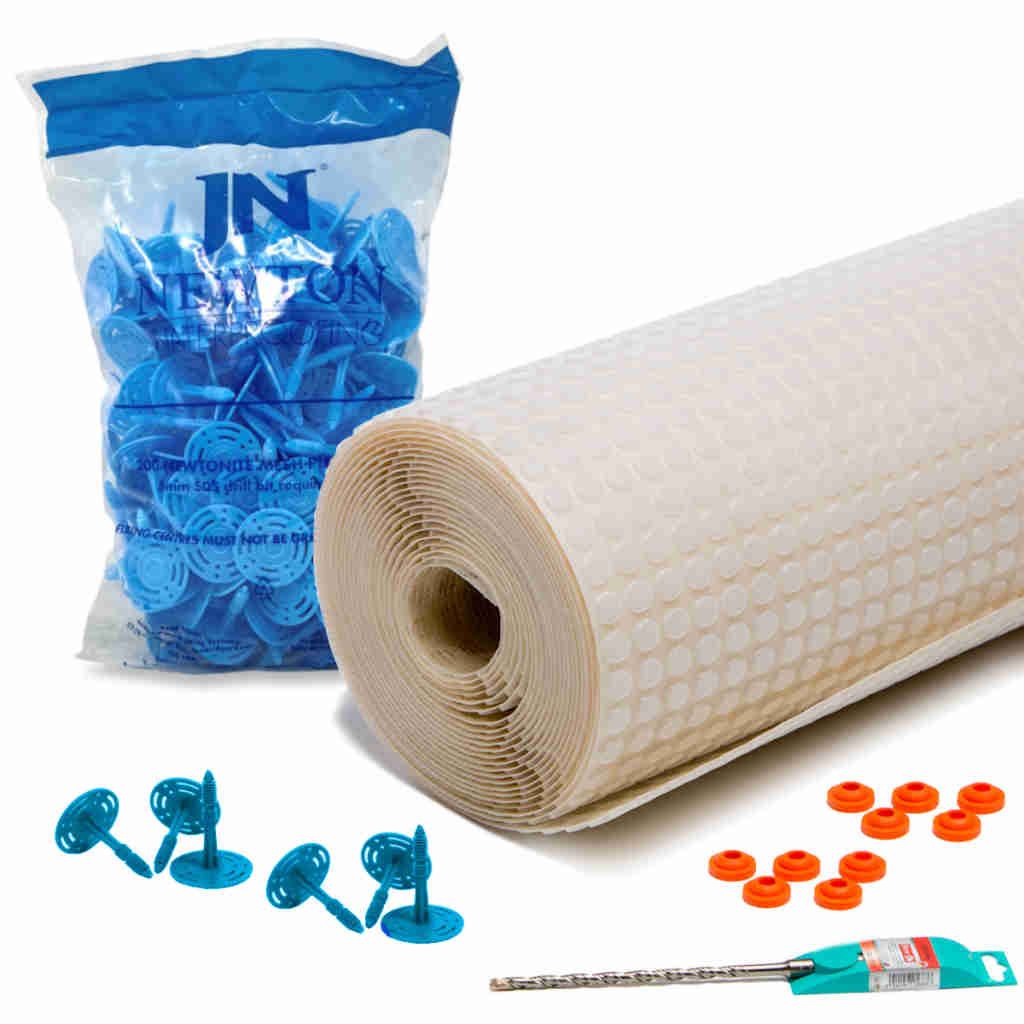

Newton CDM 503 Mesh 40m² Kit contents:

• 1 x Newton CDM 503 Mesh 40m²
• 4 x Newton Mesh Plugs (bag of 200)
• 4 x Plug Seals (bag of 200)
• 1 x 8mm SDS Drill Bit

Associated Newton mesh membrane products:

• Newton Multiplugs - for fixing the membranes to walls if dot and dab plasterboard
• Newton Mesh Plugs - for fixing the membrane to the wall if rendering
• Newton 800 Cob Plugs - for fixing the membranes to poorer quality substrate such as cob walls
• Newton Waterseal Rope - for sealing cob plugs
• Newton Waterseal Tape - for sealing membrane joints
• Newton Mesh Membrane Tape - for sealing over the butted joints of the Newton 503 mesh membrane system
